介绍

我的第一篇关于mask rcnn训练自己数据的博文，基于python代码，虽然可以跑，但是不能真正用到工程领域中，工程领域更多的是基于C++和C，如果编译tensorflow C++ API也是可以，然后利用api调用模型，但是会比较麻烦，自己也尝试过，不是那么友好。

opencv4.0，终于等到你~~~，opencv4.0已经支持mask rcnn的调用，只需要.pb文件和.pbtxt文件即可进行推理，注意，现在opencv还不支持训练深度学习模型，不过很期待这一天的到来！同时，google推出的object detection api也支持mask rcnn的训练了，这款api支持.pb和.pbtxt文件的生成，正好可以传给opencv使用，这两家怕是在一起合作的吧。

本文就是基于object detection api对mask rcnn进行训练，然后使用opencv调用，完成从python到C++的转换。

训练数据

训练数据的制作，是通过labelme，这个工具我就不多介绍了，网上很多，我上一篇mask rcnn博客上也有，对图像进行处理，最终会生成json文件。

和上篇博文不同，这里只需要原图像和对应的json文件，因为object detection api需要tfrecords格式的训练数据，因此需要把json文件转换成tfrecords文件。当然了，这里有转换代码。

其中data.pbtxt文件，格式如下，有几种类别就写几种。

item {id: 1name: 'tank'
}
item {id: 2name: 'white'
}

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
Created on Sun Aug 26 10:57:09 2018@author: shirhe-lyh
""""""Convert raw dataset to TFRecord for object_detection.Please note that this tool only applies to labelme's annotations(json file).Example usage:python3 create_tf_record.py \--images_dir=your absolute path to read images.--annotations_json_dir=your path to annotaion json files.--label_map_path=your path to label_map.pbtxt--output_path=your path to write .record.
"""import cv2
import glob
import hashlib
import io
import json
import numpy as np
import os
import PIL.Image
import tensorflow as tfimport read_pbtxt_fileflags = tf.app.flagsflags.DEFINE_string('images_dir', default='train_data/mask_data/train/images',help='')
flags.DEFINE_string('annotations_json_dir', 'train_data/mask_data/train/json',help='')
flags.DEFINE_string('label_map_path',default='train_data/mask_data/data.pbtxt',help='')
flags.DEFINE_string('output_path', default='train_data/mask_data/train/tf_record/train.record', help='')FLAGS = flags.FLAGSdef int64_feature(value):return tf.train.Feature(int64_list=tf.train.Int64List(value=[value]))def int64_list_feature(value):return tf.train.Feature(int64_list=tf.train.Int64List(value=value))def bytes_feature(value):return tf.train.Feature(bytes_list=tf.train.BytesList(value=[value]))def bytes_list_feature(value):return tf.train.Feature(bytes_list=tf.train.BytesList(value=value))def float_list_feature(value):return tf.train.Feature(float_list=tf.train.FloatList(value=value))def create_tf_example(annotation_dict, label_map_dict=None):"""Converts image and annotations to a tf.Example proto.Args:annotation_dict: A dictionary containing the following keys:['height', 'width', 'filename', 'sha256_key', 'encoded_jpg','format', 'xmins', 'xmaxs', 'ymins', 'ymaxs', 'masks','class_names'].label_map_dict: A dictionary maping class_names to indices.Returns:example: The converted tf.Example.Raises:ValueError: If label_map_dict is None or is not containing a class_name."""if annotation_dict is None:return Noneif label_map_dict is None:raise ValueError('`label_map_dict` is None')height = annotation_dict.get('height', None)width = annotation_dict.get('width', None)filename = annotation_dict.get('filename', None)sha256_key = annotation_dict.get('sha256_key', None)encoded_jpg = annotation_dict.get('encoded_jpg', None)image_format = annotation_dict.get('format', None)xmins = annotation_dict.get('xmins', None)xmaxs = annotation_dict.get('xmaxs', None)ymins = annotation_dict.get('ymins', None)ymaxs = annotation_dict.get('ymaxs', None)masks = annotation_dict.get('masks', None)class_names = annotation_dict.get('class_names', None)labels = []for class_name in class_names:label = label_map_dict.get(class_name, None)if label is None:raise ValueError('`label_map_dict` is not containing {}.'.format(class_name))labels.append(label)encoded_masks = []for mask in masks:pil_image = PIL.Image.fromarray(mask.astype(np.uint8))output_io = io.BytesIO()pil_image.save(output_io, format='PNG')encoded_masks.append(output_io.getvalue())feature_dict = {'image/height': int64_feature(height),'image/width': int64_feature(width),'image/filename': bytes_feature(filename.encode('utf8')),'image/source_id': bytes_feature(filename.encode('utf8')),'image/key/sha256': bytes_feature(sha256_key.encode('utf8')),'image/encoded': bytes_feature(encoded_jpg),'image/format': bytes_feature(image_format.encode('utf8')),'image/object/bbox/xmin': float_list_feature(xmins),'image/object/bbox/xmax': float_list_feature(xmaxs),'image/object/bbox/ymin': float_list_feature(ymins),'image/object/bbox/ymax': float_list_feature(ymaxs),'image/object/mask': bytes_list_feature(encoded_masks),'image/object/class/label': int64_list_feature(labels)}example = tf.train.Example(features=tf.train.Features(feature=feature_dict))return exampledef _get_annotation_dict(images_dir, annotation_json_path):"""Get boundingboxes and masks.Args:images_dir: Path to images directory.annotation_json_path: Path to annotated json file corresponding tothe image. The json file annotated by labelme with keys:['lineColor', 'imageData', 'fillColor', 'imagePath', 'shapes','flags'].Returns:annotation_dict: A dictionary containing the following keys:['height', 'width', 'filename', 'sha256_key', 'encoded_jpg','format', 'xmins', 'xmaxs', 'ymins', 'ymaxs', 'masks','class_names'].
#
#    Raises:
#        ValueError: If images_dir or annotation_json_path is not exist."""#    if not os.path.exists(images_dir):#        raise ValueError('`images_dir` is not exist.')##    if not os.path.exists(annotation_json_path):#        raise ValueError('`annotation_json_path` is not exist.')if (not os.path.exists(images_dir) ornot os.path.exists(annotation_json_path)):return Nonewith open(annotation_json_path, 'r') as f:json_text = json.load(f)shapes = json_text.get('shapes', None)if shapes is None:return Noneimage_relative_path = json_text.get('imagePath', None)if image_relative_path is None:return Noneimage_name = image_relative_path.split('/')[-1]image_path = os.path.join(images_dir, image_name)image_format = image_name.split('.')[-1].replace('jpg', 'jpeg')if not os.path.exists(image_path):return Nonewith tf.gfile.GFile(image_path, 'rb') as fid:encoded_jpg = fid.read()image = cv2.imread(image_path)height = image.shape[0]width = image.shape[1]key = hashlib.sha256(encoded_jpg).hexdigest()xmins = []xmaxs = []ymins = []ymaxs = []masks = []class_names = []hole_polygons = []for mark in shapes:class_name = mark.get('label')class_names.append(class_name)polygon = mark.get('points')polygon = np.array(polygon)if class_name == 'hole':hole_polygons.append(polygon)else:mask = np.zeros(image.shape[:2])cv2.fillPoly(mask, [polygon], 1)masks.append(mask)# Boundingboxx = polygon[:, 0]y = polygon[:, 1]xmin = np.min(x)xmax = np.max(x)ymin = np.min(y)ymax = np.max(y)xmins.append(float(xmin) / width)xmaxs.append(float(xmax) / width)ymins.append(float(ymin) / height)ymaxs.append(float(ymax) / height)# Remove holes in maskfor mask in masks:mask = cv2.fillPoly(mask, hole_polygons, 0)annotation_dict = {'height': height,'width': width,'filename': image_name,'sha256_key': key,'encoded_jpg': encoded_jpg,'format': image_format,'xmins': xmins,'xmaxs': xmaxs,'ymins': ymins,'ymaxs': ymaxs,'masks': masks,'class_names': class_names}return annotation_dictdef main(_):if not os.path.exists(FLAGS.images_dir):raise ValueError('`images_dir` is not exist.')if not os.path.exists(FLAGS.annotations_json_dir):raise ValueError('`annotations_json_dir` is not exist.')if not os.path.exists(FLAGS.label_map_path):raise ValueError('`label_map_path` is not exist.')label_map = read_pbtxt_file.get_label_map_dict(FLAGS.label_map_path)writer = tf.python_io.TFRecordWriter(FLAGS.output_path)num_annotations_skiped = 0annotations_json_path = os.path.join(FLAGS.annotations_json_dir, '*.json')for i, annotation_file in enumerate(glob.glob(annotations_json_path)):if i % 100 == 0:print('On image %d', i)annotation_dict = _get_annotation_dict(FLAGS.images_dir, annotation_file)if annotation_dict is None:num_annotations_skiped += 1continuetf_example = create_tf_example(annotation_dict, label_map)writer.write(tf_example.SerializeToString())print('Successfully created TFRecord to {}.'.format(FLAGS.output_path))if __name__ == '__main__':tf.app.run()

这时就生成了train.record和test.record文件。该代码需要read_pbtxt_file文件，下载链接：read_pbtxt_file.py，下载好之后放到同级目录即可。

Object Detection Api-mask rcnn训练自己的数据

关于如何使用mask rcnn训练自己的数据请参考我上一篇博文：object detection api SSD训练自己的数据，在这里再简单说下，主要做两件事，第一就是下载 mask_rcnn_inception_v2_coco模型，里面包含.pb模型。

下载完成之后，到object_detection文件夹下面找到samples\configs\mask_rcnn_inception_v2_coco.config文件，在其中修改：

model {
faster_rcnn {
num_classes: 2  #改成自己的类别数，有几种就写几
image_resizer {
keep_aspect_ratio_resizer {
min_dimension: 512  #这里不能设置太大，否则会报内存已满的错误
max_dimension: 512
}

训练参数可以修改，也可以不修改，调参试试看。

train_config: {
batch_size: 1
optimizer {
momentum_optimizer: {
learning_rate: {
manual_step_learning_rate {
initial_learning_rate: 0.0002
schedule {
step: 900000
learning_rate: .00002
}
schedule {
step: 1200000
learning_rate: .000002
}
}
}
momentum_optimizer_value: 0.9
}
use_moving_average: false
}

设置初始参数的路径，也就是下载好的模型~

gradient_clipping_by_norm: 10.0
fine_tune_checkpoint: "model_zoo/mask_rcnn_inception_v2_coco_2018_01_28/model.ckpt"
from_detection_checkpoint: true

配置好train.record和test.record，data.pbtxt上面有说过，是自己建立的。

train_input_reader: {
tf_record_input_reader {
input_path: "train_data/mask_data/train/tf_record/train.record"
}
label_map_path: "train_data/mask_data/data.pbtxt"
load_instance_masks: true
mask_type: PNG_MASKS
}eval_config: {
num_examples: 60
# Note: The below line limits the evaluation process to 10 evaluations.
# Remove the below line to evaluate indefinitely.
max_evals: 10
}eval_input_reader: {
tf_record_input_reader {
input_path: "train_data/mask_data/test/tf_record/test.record"
}
label_map_path: "train_data/mask_data/data.pbtxt"
load_instance_masks: true
mask_type: PNG_MASKS
shuffle: false
num_readers: 1
}

配置好之后就可以训练了~

训练

训练时使用train.py文件，在legacy文件夹中，拿出来就好，放在与legacy文件夹同级目录中。关于train.py文件需要修改以下位置：

flags.DEFINE_string('train_dir', 'training_data/mask/','Directory to save the checkpoints and training summaries.')flags.DEFINE_string('pipeline_config_path', 'samples/configs/mask_rcnn_inception_v2_coco.config','Path to a pipeline_pb2.TrainEvalPipelineConfig config ''file. If provided, other configs are ignored')

其中：'train_dir’是训练模型保存的路径，'pipeline_config_path’是mask_rcnn_inception_v2_coco.config配置文件的路径。

接着运行，开始训练~~~

训练结束后需要把model.ckpt文件转换为.pb文件，这时需要用到export_inference_graph.py文件，需要修改以下位置：

flags.DEFINE_string('pipeline_config_path', 'samples/configs/mask_rcnn_inception_v2_coco.config','Path to a pipeline_pb2.TrainEvalPipelineConfig config ''file.')
flags.DEFINE_string('trained_checkpoint_prefix', 'training_data/mask/model.ckpt-13798','Path to trained checkpoint, typically of the form ''path/to/model.ckpt')
flags.DEFINE_string('output_directory', 'pd_model/mask_rcnn_inception_v2_coco', 'Path to write outputs.')

其中：'trained_checkpoint_prefix’是训练后保存的模型，选择最好的那个，'output_directory’是输出.pb模型的路径，pipline_config_path是mask_rcnn_inception_v2_coco.config文件。

当生成.pb文件之后，还需要生成.pbtxt文件，opencv中sources/samples包含dnn模块，里面有转换代码，这里直接给出 dnn下载链接。下载之后，放到train.py文件的同级目录下，其中的tf_text_graph_mask_rcnn.py文件可以生成.pbtxt文件。

parser.add_argument('--input', default='F:/tensorflow_object_detection/object_detection_12_29/pd_model/mask_rcnn_inception_v2_coco/frozen_inference_graph.pb', help='Path to frozen TensorFlow graph.')
parser.add_argument('--output', default='F:/tensorflow_object_detection/object_detection_12_29/pd_model/mask_rcnn_inception_v2_coco/mask_rcnn.pbtxt', help='Path to output text graph.')
parser.add_argument('--config', default='F:/tensorflow_object_detection/object_detection_12_29/samples/configs/mask_rcnn_inception_v2_coco.config', help='Path to a *.config file is used for training.')
args = parser.parse_args()

其中：input是转换后的.pb模型，output是输出的.pbtxt文件，config还是那个配置文件。当生成.pbtxt文件之后，就可以使用opencv4.0调用了~

opencv调用mask rcnn模型

这一步就完成了从python到C++的转换。好了先上源代码吧~

#include <fstream>
#include <sstream>
#include <iostream>
#include <string.h>
#include<ctime>
#include <opencv2/dnn.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>using namespace cv;
using namespace dnn;
using namespace std;// Initialize the parameters
float confThreshold = 0.5; // Confidence threshold
float maskThreshold = 0.3; // Mask thresholdvector<string> classes;
vector<Scalar> colors = { Scalar(255, 0, 255), Scalar(0, 255, 0), Scalar(255, 0, 0) };// Draw the predicted bounding box
void drawBox(Mat& frame, int classId, float conf, Rect box, Mat& objectMask);// Postprocess the neural network's output for each frame
void postprocess(Mat& frame, const vector<Mat>& outs);int main()
{// Load names of classesstring classesFile = "./mask_rcnn_inception_v2_coco_2018_01_28/mscoco_labels.names";ifstream ifs(classesFile.c_str());string line;while (getline(ifs, line)) classes.push_back(line);Load the colors//string colorsFile = "./mask_rcnn_inception_v2_coco_2018_01_28/colors.txt";//ifstream colorFptr(colorsFile.c_str());//while (getline(colorFptr, line))//{//	char* pEnd;//	double r, g, b;//	r = strtod(line.c_str(), &pEnd);//	g = strtod(pEnd, NULL);//	b = strtod(pEnd, NULL);//	Scalar color = Scalar(r, g, b, 255.0);//	colors.push_back(Scalar(r, g, b, 255.0));//}// Give the configuration and weight files for the modelString textGraph = "C:/Users/18301/Desktop/mask_rcnn_inception_v2_coco/mask_rcnn.pbtxt";String modelWeights = "C:/Users/18301/Desktop/mask_rcnn_inception_v2_coco/frozen_inference_graph.pb";// Load the networkNet net = readNetFromTensorflow(modelWeights, textGraph);net.setPreferableBackend(DNN_BACKEND_OPENCV);net.setPreferableTarget(DNN_TARGET_CPU);// Open a video file or an image file or a camera stream.string str, outputFile;//VideoWriter video;Mat frame, blob;// Create a windowstatic const string kWinName = "Deep learning object detection in OpenCV";namedWindow(kWinName, WINDOW_NORMAL);clock_t startTime = clock();// get frame from the videoframe = imread("C:/Users/18301/Desktop/data/4.jpg");// Stop the program if reached end of videoif (frame.empty()){cout << "Done processing !!!" << endl;cout << "Output file is stored as " << outputFile << endl;waitKey(3000);}// Create a 4D blob from a frame.blobFromImage(frame, blob, 1.0, Size(512, 512), Scalar(), true, false);//blobFromImage(frame, blob);//Sets the input to the networknet.setInput(blob);// Runs the forward pass to get output from the output layersstd::vector<String> outNames(2);outNames[0] = "detection_out_final";outNames[1] = "detection_masks";vector<Mat> outs;net.forward(outs, outNames);// Extract the bounding box and mask for each of the detected objectspostprocess(frame, outs);// Put efficiency information. The function getPerfProfile returns the overall time for inference(t) and the timings for each of the layers(in layersTimes)vector<double> layersTimes;double freq = getTickFrequency() / 1000;double t = net.getPerfProfile(layersTimes) / freq;string label = format("Mask-RCNN on 2.5 GHz Intel Core i7 CPU, Inference time for a frame : %0.0f ms", t);putText(frame, label, Point(0, 15), FONT_HERSHEY_SIMPLEX, 0.5, Scalar(0, 0, 0));// Write the frame with the detection boxesMat detectedFrame;frame.convertTo(detectedFrame, CV_8U);clock_t endTime = clock();cout << "整个程序用时：" << double(endTime - startTime) / CLOCKS_PER_SEC << "s" << endl;imshow(kWinName, frame);waitKey(0);return 0;
}// For each frame, extract the bounding box and mask for each detected object
void postprocess(Mat& frame, const vector<Mat>& outs)
{Mat outDetections = outs[0];Mat outMasks = outs[1];// Output size of masks is NxCxHxW where// N - number of detected boxes// C - number of classes (excluding background)// HxW - segmentation shapeconst int numDetections = outDetections.size[2];const int numClasses = outMasks.size[1];outDetections = outDetections.reshape(1, outDetections.total() / 7);for (int i = 0; i < numDetections; ++i){float score = outDetections.at<float>(i, 2);if (score > confThreshold){// Extract the bounding boxint classId = static_cast<int>(outDetections.at<float>(i, 1));int left = static_cast<int>(frame.cols * outDetections.at<float>(i, 3));int top = static_cast<int>(frame.rows * outDetections.at<float>(i, 4));int right = static_cast<int>(frame.cols * outDetections.at<float>(i, 5));int bottom = static_cast<int>(frame.rows * outDetections.at<float>(i, 6));left = max(0, min(left, frame.cols - 1));top = max(0, min(top, frame.rows - 1));right = max(0, min(right, frame.cols - 1));bottom = max(0, min(bottom, frame.rows - 1));Rect box = Rect(left, top, right - left + 1, bottom - top + 1);// Extract the mask for the objectMat objectMask(outMasks.size[2], outMasks.size[3], CV_32F, outMasks.ptr<float>(i, classId));// Draw bounding box, colorize and show the mask on the imagedrawBox(frame, classId, score, box, objectMask);}}
}// Draw the predicted bounding box, colorize and show the mask on the image
void drawBox(Mat& frame, int classId, float conf, Rect box, Mat& objectMask)
{//Draw a rectangle displaying the bounding boxrectangle(frame, Point(box.x, box.y), Point(box.x + box.width, box.y + box.height), Scalar(255, 178, 50), 3);//Get the label for the class name and its confidencestring label = format("%.2f", conf);if (!classes.empty()){CV_Assert(classId < (int)classes.size());label = classes[classId] + ":" + label;}//Display the label at the top of the bounding boxint baseLine;Size labelSize = getTextSize(label, FONT_HERSHEY_SIMPLEX, 0.5, 1, &baseLine);box.y = max(box.y, labelSize.height);rectangle(frame, Point(box.x, box.y - round(1.5*labelSize.height)), Point(box.x + round(1.5*labelSize.width), box.y + baseLine), Scalar(255, 255, 255), FILLED);putText(frame, label, Point(box.x, box.y), FONT_HERSHEY_SIMPLEX, 0.75, Scalar(0, 0, 0), 1);Scalar color = colors[classId];// Resize the mask, threshold, color and apply it on the imageresize(objectMask, objectMask, Size(box.width, box.height));Mat mask = (objectMask > maskThreshold);Mat coloredRoi = (0.3 * color + 0.7 * frame(box));coloredRoi.convertTo(coloredRoi, CV_8UC3);// Draw the contours on the imagevector<Mat> contours;Mat hierarchy;mask.convertTo(mask, CV_8U);findContours(mask, contours, hierarchy, RETR_CCOMP, CHAIN_APPROX_SIMPLE);drawContours(coloredRoi, contours, -1, color, 5, LINE_8, hierarchy, 100);coloredRoi.copyTo(frame(box), mask);}

其中：

colors是画mask图像时的颜色，在这里因为只有两类物体，classID分别对应1和2，故在这里只生成了三个颜色，可以根据自己的类别进行调整。

classes是类别信息，可以去mscoco_labels.names下载，根据自己的要求进行更改，我把前面两个便签改成tank和white了，后面的标签其实也没啥用，可以删除也可以不删除。

接着就是调用.pb和.pbtxt文件了，把训练好的文件放到指定路径即可。

注意：blob时的图像大小不要设置太大，否则会非常慢~~~

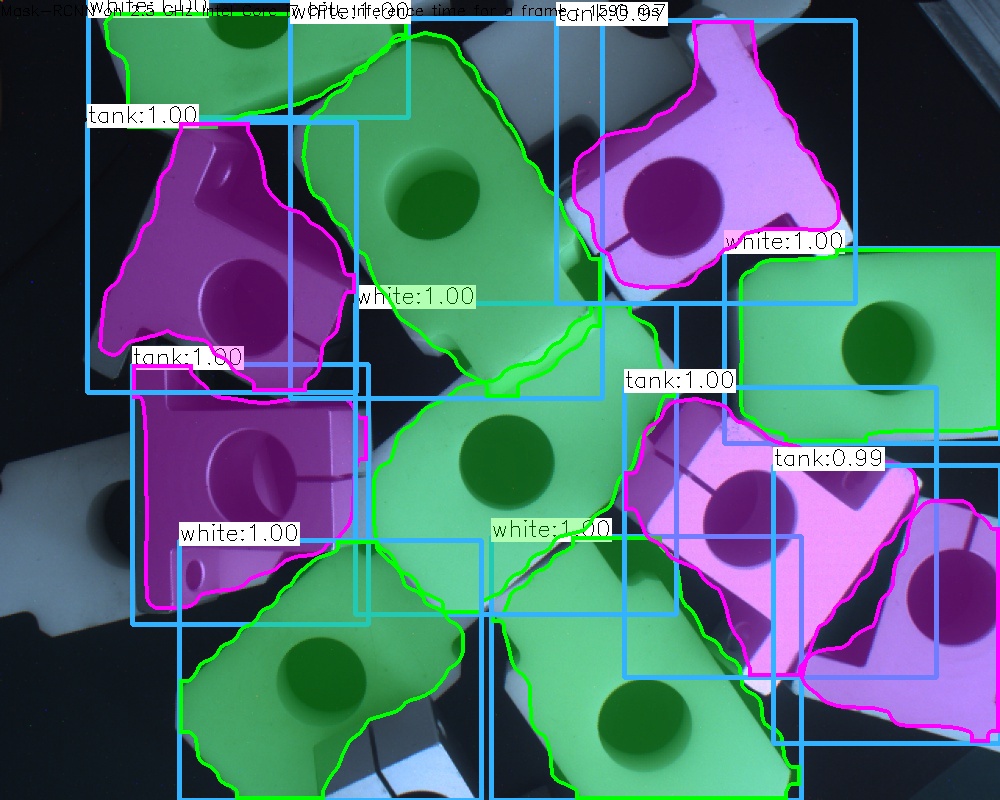

结果图像

训练只用了160幅图像，训练了一个小时，感觉效果还不够，接下来会把训练好的模型测试结果公布~~~
